RA

In the Light of Sound

RA — Trenner & Friedl

is now the 3rd generation of our flagship 2-way speaker. A significant advancement, with extensive improvements in almost every aspect.

High Energy

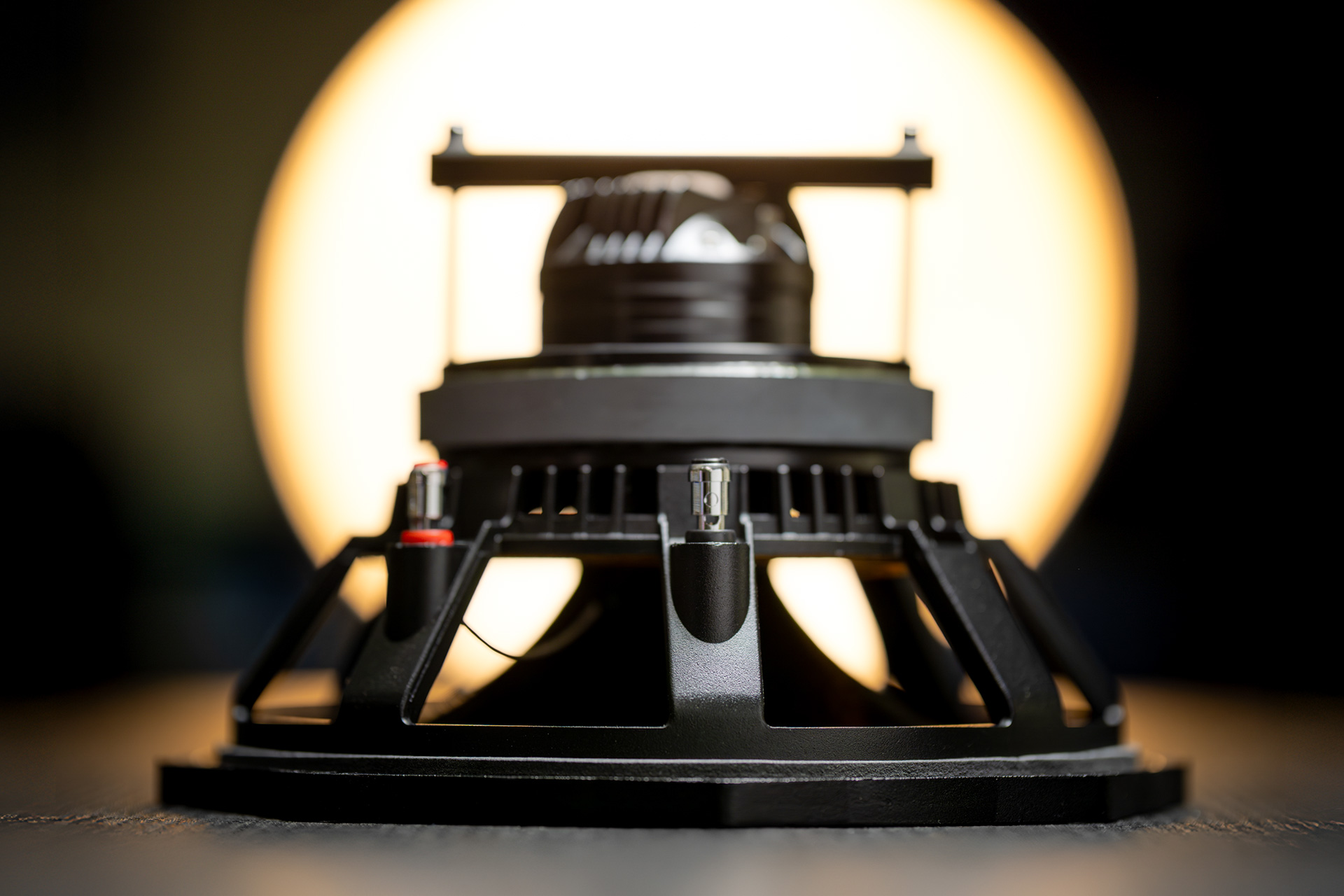

With the powerful 12-inch woofer and high-precision 1.75-inch TiNi compression driver, RA delivers exceptional clarity and precision.

The crossover, the heart of every loudspeaker, has been carefully further refined. The result is a smooth amplitude, phase and impedance.
RA is honest and balanced throughout, which is why we use it as a large studio monitor for our recordings.

The entire cabinet and tuning has been redesigned to allow for better integration into any room. This is achieved not least thanks to the radically new design of the vents. In addition, it is a perfect partner for high-quality tube amplifiers.
Completely uncomplicated for amplifiers and easy to integrate into rooms.

RA looks smaller now, but the sound has become bigger.
The credo of good design:

Form follows function!

Beautiful living with high end audio was, as always, on our agenda.

That's why the speakers can be placed close to the wall and never become dominant sculptures in the room. RA will serve with restraint and inspiring musicality.

With RA you can now choose different veneers for the cabinet and the front. The front is interchangeable, so you can change the style, if you change your mind.

FeaturesFloor standing speaker
Coaxial loudspeaker for perfect point source

Multiplex wood of different densities

Multi layered lacquer finish
Vented system with perfect matching to the room
Paper cone impregnated with Italian violin varnish
Internal wiring OFC strand (Oxiygen-Free-coppper)
Cardas terminals

Front made of multiplex veneered with ebony eco

Designed for all amplifiers
Can be placed close to walls and corners
Drive Units1 x 12” Paper cone, coated with oil laquer
1 x 1.75” Horn loaded compression driver, TiN coated titanium diaphragm
Frequency response

32 Hz (f-6 DB) to 47 kHz (f-3 DB)

Sensitivity93 dB (2.83V/1m)
Impedance8 Ohm (minimum 5.8 Ohm at 36Hz
DimensionsHeight: / 975 mm
Width: / 450mm
Depth: / 300mm
Weight

49,5 kg

Finishes Body

Standard: Walnut Eco, others on request

Finishes Front

Standard: Ebony Eco, others on request

Dimensions Brutto

430x410x1050mm; 60,5 kg
