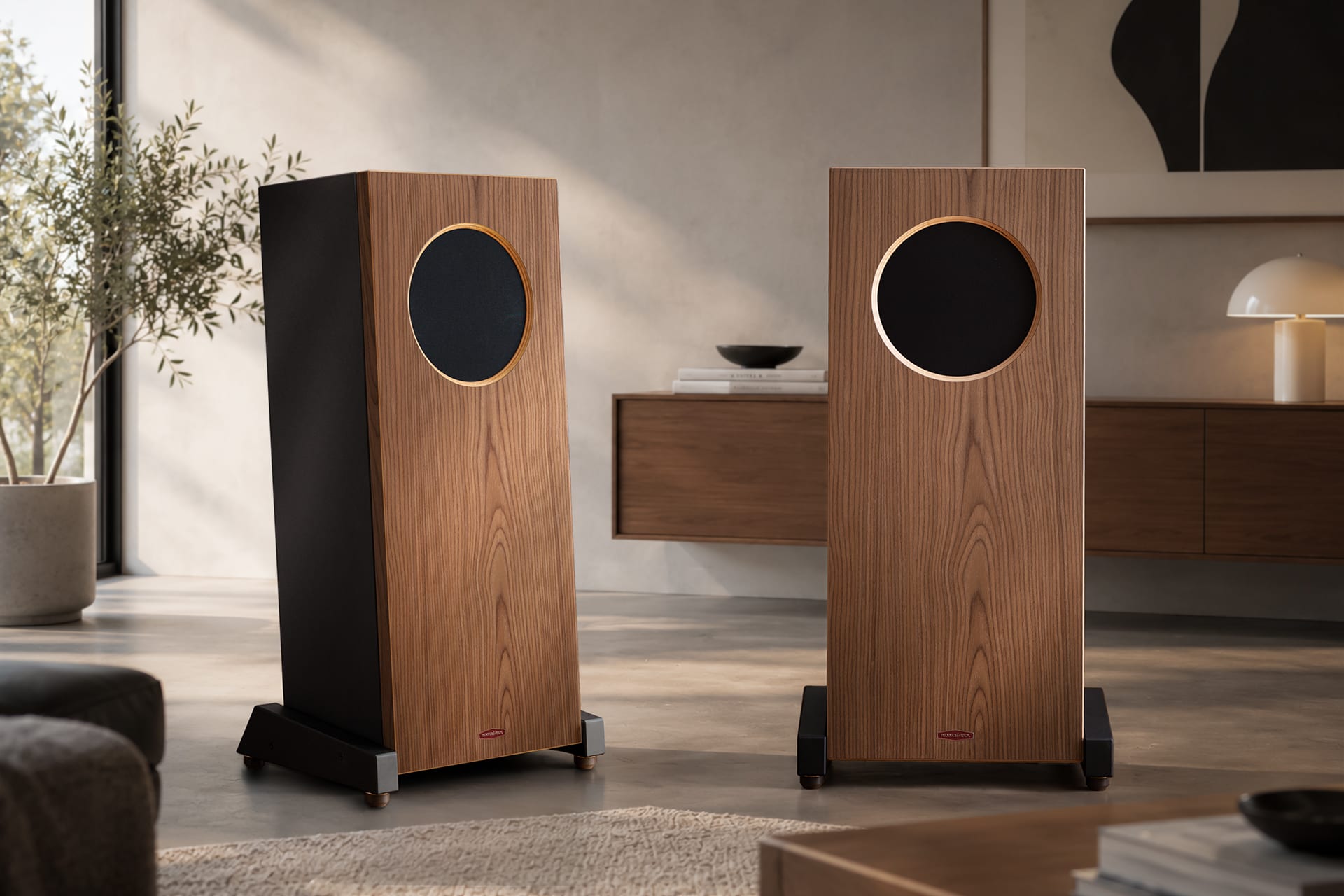

PHAROAH — Trenner & Friedl

PHAROAH
Music accompanies us throughout our lives. Sometimes it takes center stage, sometimes it simply turns a room into a home. A loudspeaker should be able to do both. It should not demand attention but simply be there – ready whenever we want to listen.

The cabinet
The new PHAROAH was created from exactly this idea. It has become more compact and more at home in living spaces, without changing its acoustic volume. A new cabinet structure with optimized sound guidance, a sophisticated internal matrix, and thinner, extremely rigid cabinet walls with high sound velocity form the foundation for this.

The front panels can be exchanged, allowing PHAROAH to adapt to different living environments.

Our cabinet makers work with a precision usually associated with watchmaking. The same care and attention with which they manufacture parts for precision mechanical movements can be found in every cabinet.

The technology
At the heart of PHAROAH is a completely newly developed coaxial driver. The individual components are handcrafted by different manufacturers in bella Italia and are then finally assembled and finished by hand in our Graz manufactory.

The woofer’s magnet system, voice coil and diaphragm weight – every detail has been carefully matched to the cabinet and optimized for maximum efficiency.

The paper diaphragms are carefully coated with Italian balsamic violin varnish.

The tweeter, with its 1 1/3" titanium diaphragm, works with a newly developed waveguide and uses the woofer diaphragm as a large horn.

PHAROAH does not only reproduce the finest details at low levels. When music grows in scale, it remains composed and controlled. Fine resolution and high dynamic reserves are not opposites here – they belong together.

PHAROAH was developed for the home. It can be placed close to the wall, offers high efficiency and is an easy load even for tube amplifiers. Ultimately, it is the sound that matters – not the power rating of the amplifier.

As a point source, PHAROAH creates a realistic spatial presentation – regardless of the music being played.

Whether Telemann or Techno, Ravel or Rock – PHAROAH does not want to explain music.
It simply wants to play.

FeaturesFloor standing speaker
Coaxial laudspeaker for perfect point source
Multiplex birch wood of different densities
Multi layered lacquer finish
Vented system with perfect matching to the listening room
Paper cone impregnated with Italian violin varnish

Internal wiring OFC strand (Oxygen-Free-copper)

Cardas posts

Crossover with high grade components

Designed for all amps
Can be placed close to walls and corners
Drive Units

Coaxial Woofer: 10" Paper cone, coated with Italian balsamic violin varnish

Tweeter: 1 1/3" Titanium diaphragm

Frequency response

45 Hz (f-3 DB) to 20 kHz (f-3 DB)

Sensitivity

92,5dB 1W/1m

Impedance

8 Ohm (Minimum 6 Ohm)

Dimensions

(without feet)

Height: / 900 mm

Width: / 380 mm

Depth: / 270 mm

Weight

38,5 kg

Dimensions, brutto

365 x 965 x 520 mm; 45,5 kg

Finishes Body

Standard: black beech

Finishes Front

Standard: Walnut Eco, others on request
