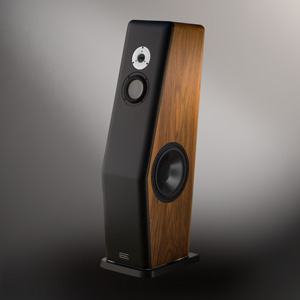

MILES
2005–2010
| Type | Floor standing speaker |
|---|---|
| Features | 3-Way vented system |
| Vented midrange chamber | |
| Cardas internal wire | |
| Cardas terminals | |
| Drive Units | Woofer: 1 x 10” Aluminum/alloy diaphragm |
| Midrange: 1 x 5” Ceramic diaphragm | |
| Tweeter: 1 x 1” T&F ring radiator, neodymium magnet system, encapsulated rear chamber, mounted heat sink | |
| Supertweeter: 1 x 1” T&F ring radiator, neodymium magnet system, encapsulated rear chamber, mounted heat sink | |
| Frequency response | 25 Hz (f~-6 DB~) to 40 kHz (f~-3 DB~) |
| Sensitivity | 87 dB (2.83V/1m) |
| Impedance | 6 Ohm |
| Dimensions | Height (with socket): / 1130 mm |
| Width (with socket): / 320 mm | |
| Depth (with socket): / 450 mm | |
| Weight | 40 kg |
| Finishes Body | Walnut |
| Rosewood | |
| Finishes Font | Leather black |
